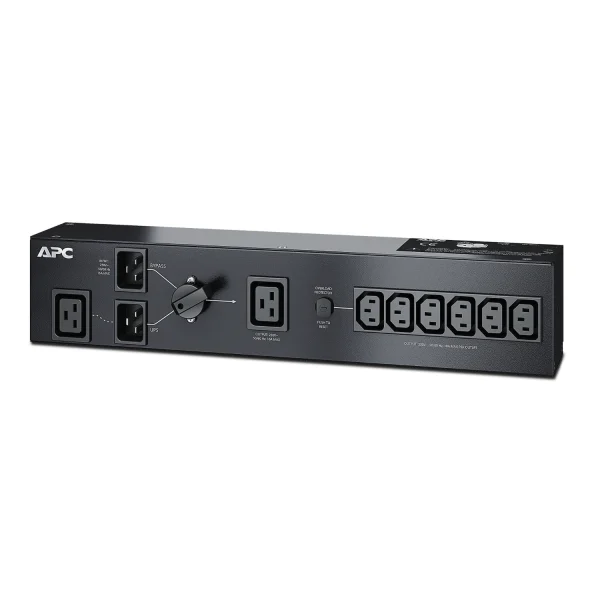

APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
Main Input Voltage 230 V
Product or component type Bypass kit
Main Output Voltage 230 V
Input Connection Type IEC 60320 C20
Number of rack unit 2U
Cable length 2.50 m
Number of cables 1
Provided equipment- User manual, Rack mounting brackets
Network frequency 50/60 Hz
Permissible voltage 220…240 V
Max line current 16 A
Input current limits 16 A
Load capacity 3000 VA Power factor 0…1
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 %
Operating altitude 0…15000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Network frequency 50/60 Hz
Permissible voltage 220…240 V
Max line current 16 A
Input current limits 16 A
Load capacity 3000 VA
Power factor 0…1
Max current draw 16 A
Number of power socket outlets 6 IEC 60320 C13, 1 IEC Jumpers, 1 IEC 60320 C19
Number of power socket outlets 7
Protection type Circuit breaker
Power cable length 1.00 m
Efficiency 99 %
Product certifications- VDE
Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Mounting mode- Rack mounted
